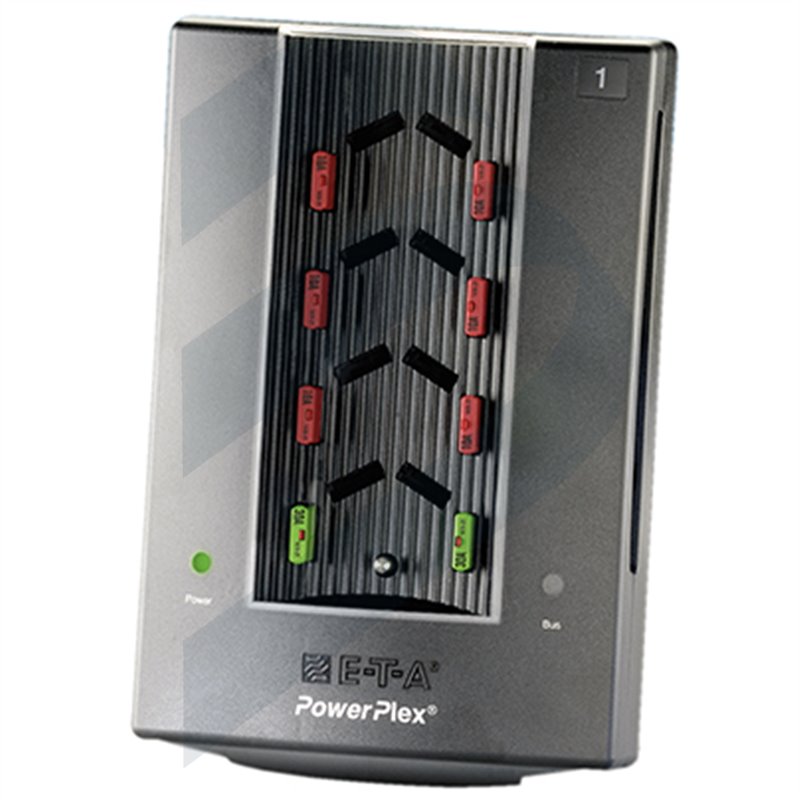

MODULE POWERPLEX

PowerPlex is a CAN based system for connecting and controlling electrical loads, and for monitoring and transmitting sensor data and commands. The system is especially suited to recreational and work boats as well as other specialised vehicle applications. PowerPlex is freely configurable by means of easy-to-use PC software, is maintenance free and protected against harmful environmental influences. PowerPlex installations comprise decentralised intelligent Panel and Power modules which greatly reduce conventional wiring and provide a very wide range of additional functionality possibilities. A total of up to 30 modules of the two types can be combined into a single installation for the transmission and processing of command signals and data. Each module is connected to the system`s DC power source. PowerPlex incorporates a manual override feature for each 8 A and 25 A load output to ensure additional security for safety-critical systems. Digital inputs: 32. Analog inputs: 4. Led Out: 32. 1A Outputs: 4. 8A Outputs: 2. 25A Outputs: 0. PPMPM0240000000
